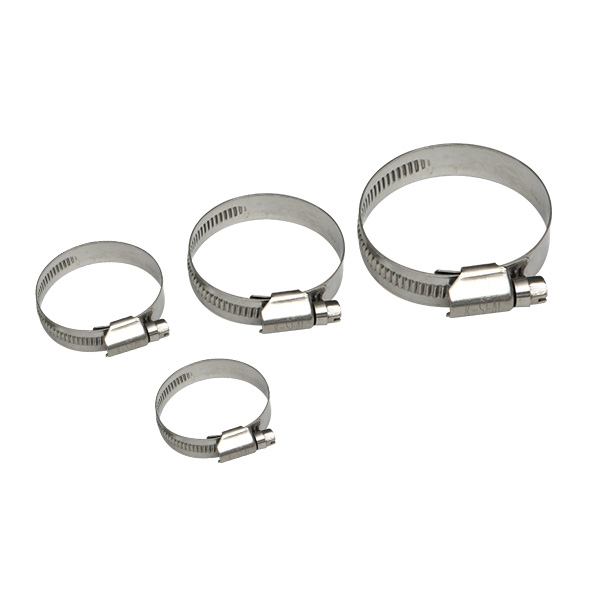

Embossed Worm Gear Hose Clamp-DIN3017 Type"FE"

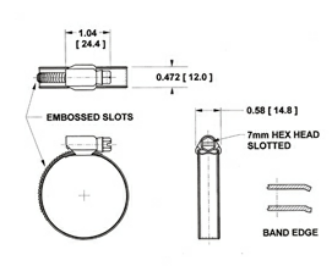

K-SEAL Embossed worm gear clamps are designed for silicone rubber and other soft hose to protect against shearing and fray.
Material grade and size are stamped on the band. Currently available in all 304ss/W4 and in 316ss/W5 stainless steel grade materials. Available in 9mm and 12mm bandwidths.
Common applications：Vehicular H.D& Automotive Motorbike, Industrial, Mechanical Engineering stainless steel Chimney, Plumbing , Marine & Shipbuiling.
SCREW DRIVER AVAILABLE!
|
K-SEAL code |
Band |
Housing |
Screw |
Corrosion Resistance |
Suggest Installation Torque(Nm) |
|
KEBXX(W1) |
galvanized steel |
galvanized steel |
galvanized steel |
Ordinary |
See table |
|
KEBAXX(W2) |
201 SS |
201 SS |
Zinc-plated |
Good |
See table |
|
KEBGXXSS(W4) |
AISI 304 SS |
AISI 304 SS |
AISI 304 SS |
Better |
See table |
|
KEBLXXSS(W5) |
AISI 316 SS |
AISI 316 SS |
AISI 316 SS |
Best |
See table |
|
Part Number |
Part Number |
Part Number |
Part Number |
Diameter Range(mm) |
AD+-0.5Nm(max) |
PD Nm(max) |
QTY/Carton |
|
KEB9X012 |
KEBA9X012 |
KEBG9X012SS |
KEBL9X012SS |
8-12 |
2 |
2.6 |
1000 |
|
KEB9X016 |
KEBA9X016 |
KEBG9X016SS |
KEBL9X016SS |
10-16 |
2 |
2.6 |
500 |
|
KEB9X020 |
KEBA9X020 |
KEBG9X020SS |
KEBL9X020SS |
12--20 |
2 |
2.6 |
500 |
|
KEB9X022 |
KEBA9X022 |
KEBG9X022SS |
KEBL9X022SS |
12--22 |
2 |
2.6 |
500 |
|
KEB9X025 |
KEBA9X025 |
KEBG9X025SS |
KEBL9X025SS |
16-25 |
2 |
2.6 |
500 |
|
KEB9X027 |
KEBA9X027 |
KEBG9X027SS |
KEBL9X027SS |
16-27 |
2 |
2.6 |
500 |
|
KEB9X032 |
KEBA9X032 |
KEBG9X032SS |
KEBL9X032SS |
20-32 |
3 |
4 |
500 |
|
KEB9X040 |
KEBA9X040 |
KEBG9X040SS |
KEBL9X040SS |
25-40 |
3 |
4 |
500 |
|
KEB9X050 |
KEBA9X050 |
KEBG9X050SS |
KEBL9X050SS |
32-50 |
3 |
4 |
500 |
|
KEB9X060 |
KEBA9X060 |
KEBG9X060SS |
KEBL9X060SS |
40-60 |
3 |
4 |
400 |
|
KEB9X070 |
KEBA9X070 |
KEBG9X070SS |
KEBL9X070SS |
50-70 |
3 |
4 |
400 |
|
KEB9X080 |
KEBA9X080 |
KEBG9X080SS |
KEBL9X080SS |
60-80 |
3 |
4 |
400 |
|
KEB9X090 |
KEBA9X090 |
KEBG9X090SS |
KEBL9X090SS |
70-90 |
3 |
4 |
400 |
|
KEB9X100 |
KEBA9X100 |
KEBG9X100SS |
KEBL9X100SS |
80-100 |
3 |
4 |
400 |
|
KEB9X110 |
KEBA9X110 |
KEBG9X110SS |
KEBL9X110SS |
90-110 |
3 |
4 |
300 |
|
KEB9X120 |
KEBA9X120 |
KEBG9X120SS |
KEBL9X120SS |
100-120 |
3 |
4 |
300 |
|
KEB9X130 |
KEBA9X130 |
KEBG9X130SS |
KEBL9X130SS |
110-130 |
3 |
4 |
300 |
|
KEB9X140 |
KEBA9X140 |
KEBG9X140SS |
KEBL9X140SS |
120-140 |
3 |
4 |
300 |
|
KEB9X150 |
KEBA9X150 |
KEBG9X150SS |
KEBL9X150SS |
130-150 |
3 |
4 |
200 |
|
KEB9X160 |
KEBA9X160 |
KEBG9X160SS |
KEBL9X160SS |
140-160 |
3 |
4 |
200 |
|
Part Number |
Part Number |
Part Number |
Part Number |
Diameter Range(mm) |
AD+-0.5Nm(max) |
PD Nm(max) |
QTY/Carton |
|
KEB12X020 |
KEBA12X020 |
KEBG12X020SS |
KEBL12X020SS |
12--20 |
5 |
6.5 |
500 |
|
KEB12X025 |
KEBA12X025 |
KEBG12X025SS |
KEBL12X025SS |
16--25 |
5 |
6.5 |
500 |
|
KEB12X027 |
KEBA12X027 |
KEBG12X027SS |
KEBL12X027SS |
16--27 |
5 |
6.5 |
500 |
|
KEB12X032 |
KEBA12X032 |
KEBG12X032SS |
KEBL12X032SS |
20--32 |
5 |
6.5 |
500 |
|
KEB12X040 |
KEBA12X040 |
KEBG12X040SS |
KEBL12X040SS |
25--40 |
5 |
6.5 |
500 |
|
KEB12X050 |
KEBA12X050 |
KEBG12X050SS |
KEBL12X050SS |
32--50 |
5 |
6.5 |
500 |
|
KEB12X060 |
KEBA12X060 |
KEBG12X060SS |
KEBL12X060SS |
40--60 |
5 |
6.5 |
400 |
|
KEB12X070 |
KEBA12X070 |
KEBG12X070SS |
KEBL12X070SS |
50--70 |
5 |
6.5 |
400 |
|
KEB12X080 |
KEBA12X080 |
KEBG12X080SS |
KEBL12X080SS |
60--80 |
5 |
6.5 |
400 |
|
KEB12X090 |
KEBA12X090 |
KEBG12X090SS |
KEBL12X090SS |
70--90 |
5 |
6.5 |
400 |
|
KEB12X100 |
KEBA12X100 |
KEBG12X100SS |
KEBL12X100SS |
80--100 |
5 |
6.5 |
400 |
|
KEB12X110 |
KEBA12X110 |
KEBG12X110SS |
KEBL12X110SS |
90--110 |
5 |
6.5 |
300 |
|
KEB12X120 |
KEBA12X120 |
KEBG12X120SS |
KEBL12X120SS |
100--120 |
5 |
6.5 |
300 |
|
KEB12X130 |
KEBA12X130 |
KEBG12X130SS |
KEBL12X130SS |
110--130 |
5 |
6.5 |
300 |
|
KEB12X140 |
KEBA12X140 |
KEBG12X140SS |
KEBL12X140SS |
120--140 |
5 |
6.5 |
300 |
|
KEB12X150 |
KEBA12X150 |
KEBG12X150SS |
KEBL12X150SS |
130--150 |
5 |
6.5 |
200 |
|
KEB12X160 |
KEBA12X160 |
KEBG12X160SS |
KEBL12X160SS |
140--160 |
5 |
6.5 |
200 |
|
XX |
XX |
XX |
XX |
XX |
|
|
XX |
Available in packed and bulk stock. Other packaging methods available.
Clamps meet or exceed DIN3017 Type FE.
More SIZES AVAILABLE UPON REQUEST.
