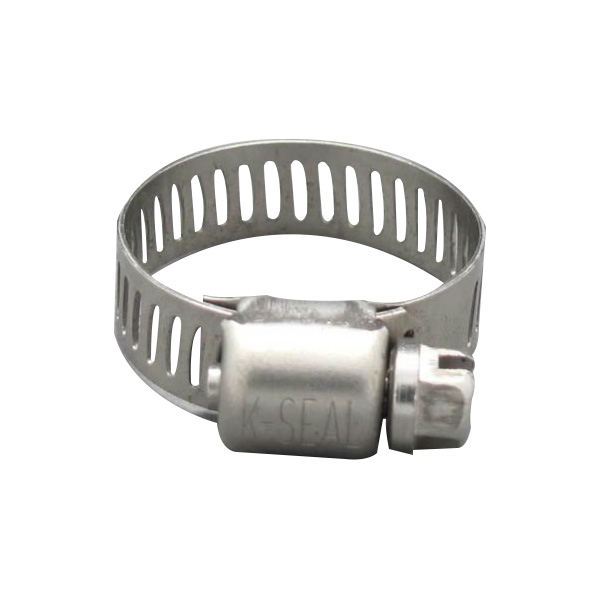

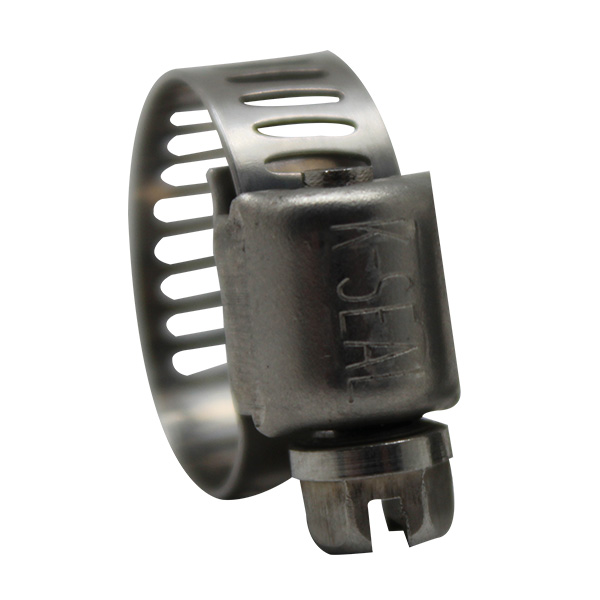

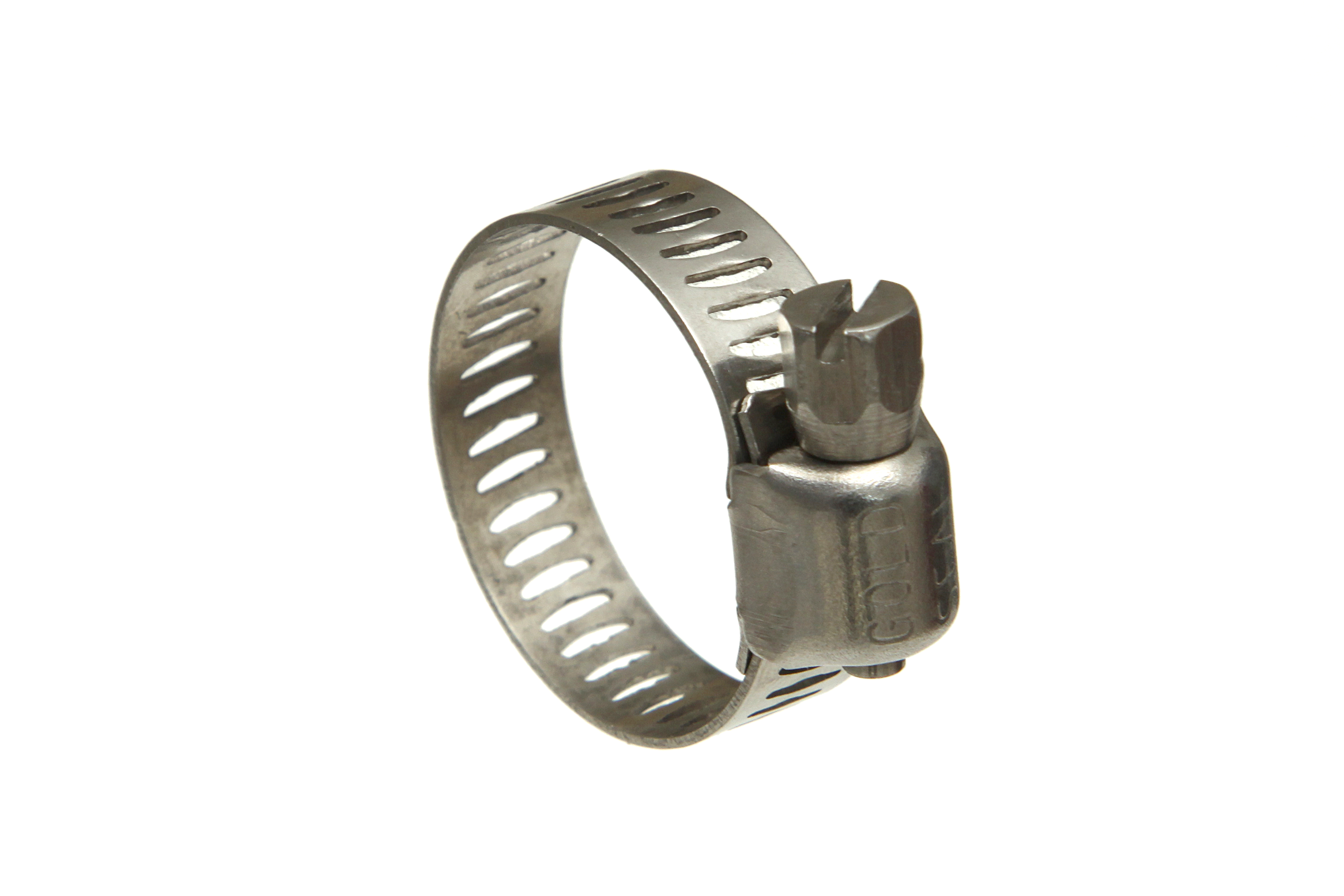

5/16" Wide Worm Drive Clamp

5/16" Wide Worm Drive Clamp

HOW ARE WORM GEAR HOSE CLAMPS USED?

Worm gear hose clamps are favored for their simplicity, strength, and versatility, making them suitable for countless applications across many industries and households:

  • Automotive – radiator hoses, fuel lines, vacuum hoses, air intake hoses, and turbocharger connections
  • Agriculture – water pumps and systems and fertilizer spreaders
  • Industrial – chemical-resistant hoses, coolant lines, and pneumatic lines.
  • Marine – Used in boats to secure bilge pump hoses, coolant lines, and other water system hoses.
  • Plumbing and water systems – garden hoses, pool and spa systems, plumbing repairs, and irrigation systems
  • HVAC systems – Fastening ductwork, securing hoses for cooling systems, and holding flexible air ducts.

Lightweight, low profile, compact design allows ease of installation in space restricted applications. The 5/16’’ band width generates significant sealing pressure with relatively low installation torque levels.

K-SEAL code

Band

Housing

Screw

Corrosion Resistance

Suggest Installation Torque(Nm)

KMMAxx

AISI 101 SS

AISI 101 SS

galvanized steel

Ordinary

2.3

KMMCxxSS

AISI 101 SS

AISI 101 SS

AISI 101 SS

Ordinary

1.7

KMMQXXSS

AISI 300 SS

AISI 300 SS

galvanized steel

Ordinary

2.3

KMMPXXSS

AISI 300SS

AISI 300SS

AISI 410SS

Good

1.7

KMMFXXSS

AISI 300 SS

AISI 300SS

AISI 304 SS

Better

1.7

KMMGxxSS

AISI 304 SS

AISI 304 SS

AISI 304 SS

Best

1.7

KMMLxxSS

AISI 316 SS

AISI 316 SS

AISI 316 SS

Highest

1.7



Size Ref

Diameter Range

QTY/Carton

Min(inch)

Max(inch)

Min (mm)

Max (mm)

3

1/4

1/2

6

13

2000

4

1/4

  5/8

6

16

2000

5

5/16

29/32

8

23

1500

8

3/8

1

10

25

1000

10

9/16

1-1/16

14

27

1000

12

11/16

1-1/4

17

32

1000

16

7/8

 1-1/2

23

38

1000

20

1-5/32

 1-3/4

29

44

1000

24

1-7/16

2

36

51

500

28

1-5/8

   2-1/4

41

57

500

32

1-13/16

2-1/2

47

63

500

36

2-3/16

  2-3/4

55

70

500

40

2-3/8

  3

61

76

500

Available in packed and bulk stock. Other packaging methods available.

Clamps meet or exceed SAE J1508 Type F.

More SIZES AVAILABLE UPON REQUEST.
