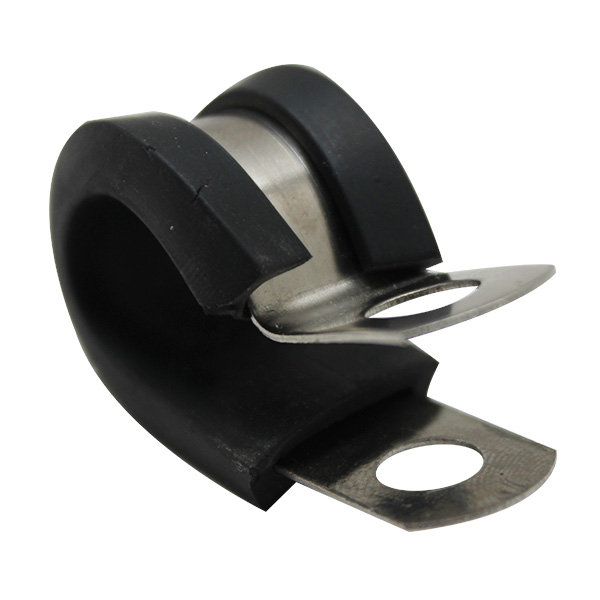

Retainning clip for pipes, cables, cable harnesses, cable-protection pipes, hoses and other lines.
-- Rubber cushion absorbs vibration and protect the hold object.
--Bands have reinforced bolt holes for extra strength.
Product details:
●12mm、12.7mm、15mm、20mm Band Widths
●Galvanized or 300SS
●Diameter Range 3mm – 100mm
●EPDM Rubber Cushion
|
Kseal Code |
Bandwidth(mm) |
Band Material |
|
P1-0-D1-12.7XX |
12.7 |
Galvanized Steel |
|
P1-4-D1-12.7XX |
12.7 |
300SS |
|
P2-0-D1-12XX |
12 |
Galvanized Steel |
|
P2-4-D1-12XX |
12 |
300SS |
|
P2-0-D1-15XX |
15 |
Galvanized Steel |
|
P2-4-D1-15XX |
15 |
300SS |
|
P2-0-D1-20XX |
20 |
Galvanized Steel |
|
P2-4-D1-20XX |
20 |
300SS |
| Diameter (mm) | QTY/Carton | Diameter (mm) | QTY/Carton |
| φ3 | 3,000 | φ30 | 500 |
| φ4 | 3,000 | φ32 | 500 |
| φ5 | 3,000 | φ34 | 500 |
| φ6 | 1,000 | φ35 | 500 |
| φ8 | 1,000 | φ36 | 500 |
| φ10 | 1,000 | φ38 | 500 |
| φ11 | 1,000 | φ40 | 500 |
| φ12 | 1,000 | φ42 | 500 |
| φ13 | 1,000 | φ45 | 500 |
| φ14 | 1,000 | φ48 | 300 |
| φ16 | 1,000 | φ50 | 300 |
| φ18 | 500 | φ54 | 300 |
| φ19 | 500 | φ60 | 300 |
| φ20 | 500 | φ65 | 300 |
| φ21 | 500 | φ70 | 200 |
| φ22 | 500 | φ75 | 200 |
| φ24 | 500 | φ80 | 200 |
| φ25 | 500 | φ85 | 200 |
| φ26 | 500 | φ89 | 200 |
| φ27 | 500 | φ90 | 200 |
| φ28 | 500 | φ95 | 200 |
| φ29 | 500 | φ100 | 200 |
Available in packed and bulk stock. Other packaging methods available.
Clamps meet or exceed DIN3016.
MORE SIZES AVAILABLE UPON REQUEST
