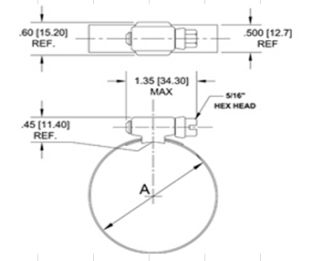

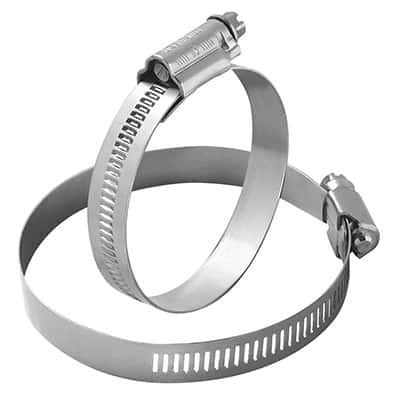

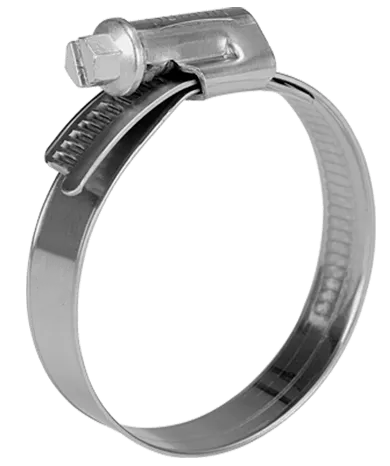

1/2" Wide Worm Drive Hose Clamp

BENEFITS OF WORM GEAR HOSE CLAMPS

Worm gear clamps provide a fast, simple, and reliable way to secure hoses and pipes in a wide range of applications. Their design allows for even pressure distribution with a simple tightening mechanism using a screwdriver, making them a versatile choice for both home and industrial settings. Worm gear clamps offer many benefits:

Even clamping pressure: The worm gear mechanism ensures consistent pressure around the hose, reducing the risk of crushing or leaks. The high torque provides a strong and secure grip.

Easy to install and adjust: Worm gear clamps can be tightened or loosened with a simple screwdriver, making them convenient for various applications.

Wide compatibility: Worm gear clamps are available in various sizes to fit a wide range of hoses and pipes.

Durable materials: Worm gear clamps are often made from stainless steel, which provides resistance to corrosion and harsh environments.

Cost-effective: Worm gear clamps are considered a reliable and affordable option for securing hoses. They can be loosened, removed, and reused.

Suitable for most common household and automotive applications. The bands have clean punched rectangular perforations that hold strong and connect easily.

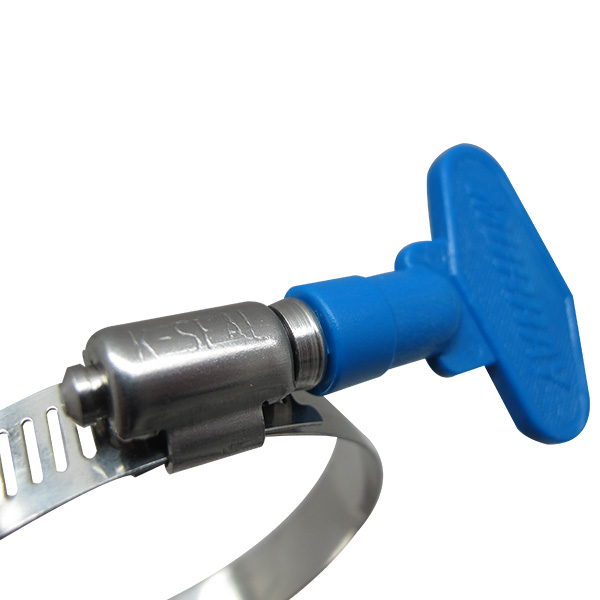

K-SEAL Clamp Key

K-SEAL code	Band	Housing	Screw	Corrosion Resistance	Suggest Installation Torque(Nm)
KBxx	AISI 201 SS	AISI 201 SS	galvanized steel	Ordinary	3.4--4.5 Nm
KAxxSS	201 SS	201 SS	201 SS	Good	4.0--5.1 Nm
KBxxSS	AISI 201 SS	AISI 201 SS	AISI 201 SS/410SS	Better	4.0--5.1 Nm
KFxxSS	AISI 300SS	AISI 300SS	AISI 301 SS	Best	4.0--5.1 Nm
KGxxSS	AISI 304 SS	AISI 304 SS	AISI 304 SS	Best	4.0--5.1 Nm
KLxxSS	AISI 316 SS	AISI 316 SS	AISI 316 SS	Highest	4.0--5.1 Nm

Size Ref	Diameter Range				QTY/Carton
Size Ref	Min(inch)	Max(inch)	Min (mm)	Max (mm)	QTY/Carton
6	7/16	25/32	11	20	500
8	7/16	29/32	11	23	500
10	9/16	1-1/16	14	27	500
12	11/16	1-1/4	17	32	500
16	3/4	1-1/2	19	38	500
20	13/16	1-3/4	21	44	500
24	1-1/16	2	27	51	500
28	1-5/16	2-1/4	33	57	500
32	1-9/16	2-1/2	40	64	400
36	1-13/16	2-3/4	46	70	400
40	2-1/16	3	52	76	400
42	2-1/5	3-1/5	56	80	400
44	2-5/16	3-1/4	59	83	400
48	2-9/16	3-1/2	65	89	400
52	2-13/16	3-3/4	71	95	400
56	3-1/16	4	78	102	400
60	3-5/16	4-1/4	84	108	400
64	3-9/16	4-1/2	90	114	300
68	3-13/16	4-3/4	97	121	300
72	4-1/16	5	103	127	300
76	4-5/16	5-1/4	110	133	300
80	4-9/16	5-1/2	116	140	300
84	4-13/16	5-3/4	122	146	300
88	5-1/16	6	129	152	200
92	5-5/16	6-1/4	135	159	200
96	5-9/16	6-1/2	141	165	200
104	6-1/16	7	154	178	200
108	6-5/16	7-1/4	160	184	200
112	6-9/16	7-1/2	167	191	200
116	6-1/2	7-3/4	165	197	200
128	5-11/16	8-1/2	144	216	200
140	6-7/16	9-1/4	163	235	200
152	7-3/16	10	183	254	200
160	7-11/16	10-1/2	195	267	200
164	7-15/16	10-3/4	202	273	200
176	8-11/16	11-1/2	225	292	100
188	9-7/16	12-1/4	239	311	100
236	12-7/16	15-1/4	315	387	100
248	13-3/16	16	335	406	100

Available in packed and bulk stock. Other packaging methods available.

Clamps meet or exceed SAE J1508 Type F.

More SIZES AVAILABLE UPON REQUEST.

9/16“ Band is also available.
